Available in 18,000, 24,000, 36,000, and 42,000 Btu/h capacities, the ceiling-cassette indoor units in these duct-free split heat-pump systems provide comfort in large, open spaces.
Duct-free installation with an esthetically pleasing indoor unit design. The four-way controlled louvers and fan speed features on these ceiling cassette indoor units allow for even air distribution. Easy control through the included wireless remote or optional wired wall-mounted controller.
|
|
|
|

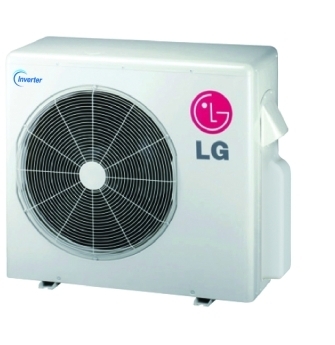

| System Model # | LUU187HV | LUU247HV | LUU367HV | LUU427HV | | Indoor Model # | LCN187HV | LCN247HV / LHN247HV | LCN367HV / LHN367HV | LCN427HV | | Outdoor Model # | LUU187HV | LUU247HV | LUU367HV | LUU427HV | | Ceiling Grill Model# (Sold Separately) | PT-UMC1 | PT-UMC1 | PT-UMC1 | PT-UMC1 | | |
|
|
|
| | Performance |
|
|
|
| | Capacity (BTUs) cooling/heating | 18,000/20,000 | 24,000/27,000 | 36,000/40,000 | 42,000/47,000 | | SEER | 20 | 17 | 19 | 17 | | HSPF | 10.1 | 9.7 | 9.5 | 8.6 | | EER | 15 | 12.6 | 13.5 | 10.3 | | Air Circulation (CFM H/M/L) | 565/494/424 | 600/530/459 | 1,060/989/918 | 1,060/989/918 | | Fan Speeds (Fan/Cooling/Heating) | 4/5/24 | 4/5/24 | 4/5/24 | 4/5/24 | | Dehumidification (pts/hr) | 5.1 | 5.1 | 7.7 | 7.7 | | Indoor H/M/L dB(A)* | 38/36/34 | 38/36/34 | 46/44/43 | 46/44/43 | | Outdoor (Cooling/Heating) dB(A)* | 48/52 | 48/52 | 52/54 | 52/54 | | | *LG verified sound ratings |
|
|
|
| | Electrical |
|
|
|
| | Rated Voltage Outdoor | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | | Rated Voltage Indoor | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | Power Input (Cooling/Heating) | 1,260/1,500 | 1,910/2,600 | 2,970/3,200 | 4,070/4,050 | |
|
|
|
| Indoor Dimensions |
|
|
|
| W x H x D (inch) | 33 1/16 x 8 1/32 x 33 1/16 | 33 1/16 x 8 1/32 x 33 1/16 | 33 1/16 x 11 11/32 x 33 1/16 | 33 1/16 x 11 11/32 x 33 1/16 | Weight (lbs.) | 46 | 46 | 55 | 55 | Outdoor Dimensions |
|
|
|
| W x H x D (inch) | 37 13/32 x 32 27/32 x 12 31/32 | 37 13/32 x 32 27/32 x 12-31/32 | 37 13/32 x 32 27/32 x 12-31/32 | 37 13/32 x 54 11/32 x 13 | Weight (lbs.) | 133 | 133 | 203 | 203 | |
|
|
|
| Thermostat Range |
|
|
|
| Cooling (°F) | 57-77 | 57-77 | 57-77 | 57-77 | Heating (°F) | 59-81 | 59-81 | 59-81 | 59-81 |
|
|
|
|
|
Piping Connections |
|
|
|
| | | Liquid (inches) | 3/8 | 3/8 | 3/8 | 3/8 | | | Suction (Inches) | 5/8 | 5/8 | 5/8 | 5/8 | | | Temperature Sensor | Thermistor | Thermistor | Thermistor | Thermistor | | | Refrigerant | R410A | R410A | R410A | R410A | | | Max Pipe Length | 164' | 164' | 246' | 246' | | | Max Elevation | 98' | 98' | 98' | 98' |
Features
• Inverter (Variable speed compressor)
• Internal condensate pump included
• Swirl Wind
• 4-Way cooling
• Jet Cool
• Cooling mode
• Dehumidifying mode
• Night Quiet Operation
• Built-in low ambient standard, down to 5ºF (cooling mode)
• Fan mode
• Independent vane control
• 3 fan speeds
• Evaporator frost control
• 24-Hour on/off timer
• Auto restart
• Auto changeover
• Temperature display on remote
• Ultra-quiet turbo fan
• Gold Fin™ Anti-Corrosion
Interior Unit Includes:
• Ceiling unit
• Wireless remote control with batteries
• Installation manual
• Required accessory
- Model name : PT-UMC1
(Ceiling grill sold separately)
• Optional accessories
- Model # : PREMTB10U
(LG Programmable Thermostat)
- Model name : PTPKM0
(Plasma kit)
- Model name: PTVK410+PTVK420
(Ventilation kit)
- Model name: PTEGM0
(Auto Elevation kit)
- Model # : PMNFP14A0
(PI485 V-net interface)
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Benefits
* Inverter variable-speed compressor on the outdoor unit for energy-saving operation
* Many modes included, controlled through wireless remote or wired wall controller: Cooling, Heating, Dehumidifying, Fan
* Independent louver control
* Internal condensate pump included
* Swirl Wind controls the louvers and fan speeds to create a stronger, wider air flow
* Jet Cool operates at high fan speeds for 30 minutes to quickly cool down a room
* Operates down to 5°F in cooling mode
* Allows refrigerant piping lengths up to 164 or 246 feet (depending on the model), and elevation difference of 98 feet
* R410A refrigerant
|
|
|
|
|
|
|
