LG's most energy-efficient line of heat pump duct-free products. Systems are available in 9,000, 12,000, 18,000, and 24,000 Btu/h capacities.
All systems in the duct-free high-efficiency line achieve Energy Star qualifications. The single zone systems feature energy-saving Inverter (variable-speed compressor) technology and can be controlled through a standard wireless remote or an optional wired wall controller.
System Model # | LS091HSV3 | LS121HSV3 | LS181HSV3 | LS240HSV3 | LS307HV3 | LS360HV3 | Indoor Model # | LSN091HSV3 | LSN121HSV3 | LSN181HSV3 | LSN240HSV3 | LSN307HV3 | LSN360HV3 | Outdoor Model # | LSU091HSV3 | LSU121HSV3 | LSU181HSV3 | LSU240HSV3 | LSU307HV3 | LSU360HV3 | | |
|
|
|
|
| Performance |
|
|
|
|
|
| Capacity (BTUs) cooling | 9,000 | 11,200 | 18,200 | 22,000 | 30,000 | 33,000 | Capacity (BTUs) heating | 10,800 | 13,300 | 22,000 | 27,600 | 32,000 | 35,200 | EER | 13.3 | 12.5 | 12.6 | 12.5 | 10.0 | 8.2 | SEER | 21.5 | 21.5 | 20.5 | 20.0 | 18.0 | 16.1 | HSPF | 11.0 | 11.0 | 9.7 | 10.2 | 9.5 | 9.9 | Air Circulation (CFM H/M/L) | 335/272/212 | 353/272/212 | 622/509/399 | 742/629/424 | 770/629/424 | 795/629/424 | Fan Speeds | 6/6/6 | 6/6/6 | 6/6/6 | 4/4/4 | 4/4/4 | 4/4/4 | Dehumidification (pts/hr) | 2.6 | 3.0 | 5.5 | 6.0 | 10.6 | 10.6 | Indoor dB(A)* | 38/33/24 | 39/33/24 | 45/40/35 | 46/43/39 | 49/44/39 | 49/44/39 | Outdoor dB(A)* | 45 | 45 | 53 | 54 | 55 | 55 | | *LG verified sound ratings | |
|
|
|
|
| Electrical |
|
|
|
|
|
| Rated Voltage Outdoor | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | Rated Voltage Indoor | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | 230/208-60-1 | | |
|
|
|
|
| Indoor Dimensions |
|
|
|
|
|
| W x H x D (inches) | 34 13/16 x 11 1/4 x 8 1/4 | 34 13/16 x 11 1/4 x 8 1/4 | 40 9/16 x 12 13/16 x 9 11/16 | 40 9/16 x 12 13/18 x 9 11/16 | 47 5/8 x 13 5/8 x 8 1/16 | 47 5/8 x 13 5/8 x 8 1/16 | Weight (lbs.) | 23 | 23 | 32 | 36 | 36 | 36 | Outdoor Dimensions |
|
|
|
|
|
| W x H x D (inches) | 30 5/16 x 21 1/2 x 11 5/16 | 30 5/16 x 21 1/2 x 11 5/16 | 34 1/4 x 31 1/2 x 12 5/8 | 34 1/4 x 31 1/2 x 12 5/8 | 34 1/4 x 31 1/2 x 12 5/8 | 34 1/4 x 31 1/2 x 12 5/8 | Weight (lbs.) | 75 | 75 | 123 | 128 | 128 | 128 | | |
|
|
|
|
| Thermostat Range |
|
|
|
|
|
| Cooling / Heating (°F) | 64-86/60-86 | 64-86/60-86 | 64-86/60-86 | 64-86/60-86 | 64-86 /60-86 | 64-86 /60-86 | | |
|
|
|
|
|
Piping Connections |
|
|
|
|
|
| Liquid (inches) | 1/4 | 1/4 | 3/8 | 3/8 | 3/8 | 3/8 | Suction (inches) | 3/8 | 3/8 | 5/8 | 5/8 | 5/8 | 5/8 | Temperature Sensor | Thermistor | Thermistor | Thermistor | Thermistor | Thermistor | Thermistor | Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | Max Pipe Length | 65' | 65' | 98' | 98' | 98' | 98' | Max Elevation | 32' | 32' | 49' | 49' | 49' | 49' |
Warranty: 5 years parts; 7 years compressor
Features
• Inverter (Variable speed compressor)
• Energy saving
• R-410A Refrigerant
• Gold Fin™ Anti-corrosion
• Self-cleaning indoor coil
• Cooling/Heating/Fan mode
• Jet cool/Jet heat
• Chaos Wind
• 4-Way Auto Swing
• Sleep mode
• Auto restart
• Auto Changeover
• Built-in low ambient standard, down to 14ºF (cooling mode)
• 24-Hour on/off timer
• Condensate sensor connection
• Cooling only function
• 3M HAF filter Interior Unit Includes:
• Wall unit
• Installation plate & hardware
• Remote control, batteries, holder & holder hardware
• Installation manual
• Optional Accessories
-Model#:PREMTB10U
(LG Programmable Thermostat)
-Model#:PQDSNGMC1
(Dry Contact for Third Party Thermostat)
-Model#:ZLABGP01A
(Low ambient wind baffle kit - cooling down to 0ºF)

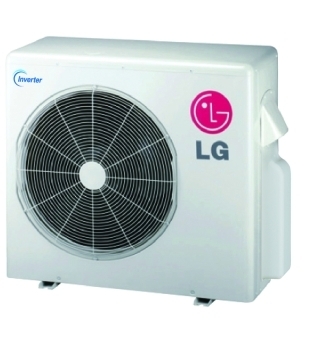

Exterior Unit Includes:
• Exterior unit
• Exterior unit has sufficient refrigerant for charging indoor coil and a 41’ line set (line set not included)
ETL# : 3091879
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Benefits
* Inverter variable-speed compressor in the outdoor unit for energy-saving operation
* Self-cleaning coils in the indoor unit for easier maintenance
* Many modes included, controlled through wireless remote: Cooling, Heating, Dehumidifying, Fan, Auto, Auto Sleep, Defrost
* Four-way Auto Swing feature
* Chaos Wind electronically controls fan speeds to create a more natural flow of air; Jet Cool / Jet Heat operates at high fan speeds for 30 minutes to quickly cool / heat down a room
* Operates down to 14°F in cooling mode
* Ultra quiet indoor unit operation
* Allows refrigerant piping lengths up to 66 or 98 feet, and elevation difference of 33 or 49 (depending on the model)
* R410A refrigerant
|
|
|
|
|
|
|
