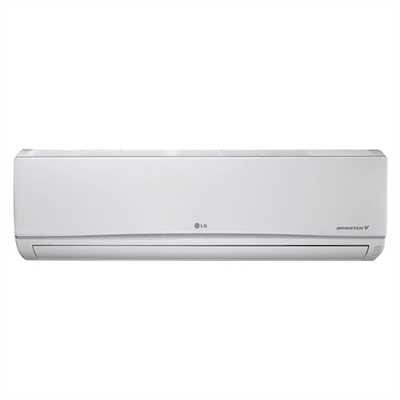

[Single] LS-HSV4 - Indoor Only
Alternative Views:
Indoor:
$
425.00
___________
Notice:
*Warranty: 5 yrs parts; 7 yrs compressor
*All LG AC unit purchases come with 1 free line set (25Ft.)
Product Code:
LS-HSV4
Model:
First, Select Model
BTU:
Then, Select BTU
Quantity:
Description
Specifications
Features
Systems are available in 9,000, 12,000, 18,000, and 24,000 Btu/h capacities.
The single zone systems feature energy-saving Inverter (variable-speed compressor) technology and can be controlled through a standard wireless remote or an optional wired wall controller.
System Model #
LS090HSV4
LS120HSV4
LS180HSV4
Indoor Model #
LSN090HSV4
LSN120HSV4
LSN180HSV4
Outdoor Model #
LSU090HSV4
LSU120HSV4
LSU180HSV4
Performance
Capacity (BTUs) cooling
9,000
11,200
18,200
Capacity (BTUs) heating
10,800
13,300
22,000
EER
13.3
12.5
12.6
SEER
21.5
21.5
20.5
HSPF
10.8
11
9.7
Air Circulation (CFM H/M/L)
353/272/191
353/272/191
622/509/399
Fan Speeds
6/6/2006
6/6/2006
6/6/2006
Dehumidification (pts/hr)
2.3
2.3
5.5
Indoor dB(A)*
38/33/23/19
39/33/23/19
45/40/35/29
Outdoor dB(A)*
45
45
53
Electrical
Rated Voltage Outdoor
208-230/60/1
208-230/60/1
208-230/60/1
Rated Voltage Indoor
208-230/60/1
208-230/60/1
208-230/60/1
Indoor Dimensions
W x H x D (inches)
34 13/16 x 11 1/4 x 8 1/4
34 13/16 x 11 1/4 x 8 1/4
40 9/16 x 12 13/16 x 9 13/16
Weight (lbs.)
20
20
31
Outdoor Dimensions
W x H x D (inches)
30 5/16 x 21 1/2 x 11 5/16
30 5/16 x 21 1/2 x 11 5/16
34 1/4 x 31 1/2 x 12 19/32
Weight (lbs.)
75
75
121
Thermostat Range
Cooling / Heating (°F)
64-86/60-86
64-86/60-86
64-86/60-86
*LG verified sound ratings
Features
• Inverter (Variable speed compressor)
• Energy saving
• R-410A Refrigerant
• Gold Fin™ Anti-corrosion
• Self-cleaning indoor coil
• Cooling/Heating/Fan mode
• Jet cool/Jet heat
• Chaos Wind
• 4-Way Auto Swing
• Sleep mode
• Auto restart
• Auto Changeover
• Built-in low ambient standard, down to 14ºF (cooling mode)
• 24-Hour on/off timer
• Condensate sensor connection
• Cooling only function
• AC Smart module
• 3M HAF filter
Interior Unit Includes:
• Wall unit
• Installation plate & hardware
• Remote control, batteries, holder & holder hardware
• Installation manual
• Optional Accessories
-Model#:PREMTB10U
(LG Programmable Thermostat)
-Model#:PMNFP14A0
(PI-485)
-Model#:ZLABGP02A
(Low ambient wind baffle kit - cooling down to 0ºF)
-Model#:PQDSNGMC1
(Dry Contact for Third Party Thermostat)
Exterior Unit Includes:
• Exterior unit
• Exterior unit has sufficient refrigerant for charging indoor coil and a 24.6’ line set (line set not included)
ETL# : 3091879
Benefits
Capacities ranging from 9,000 – 24,000 Btu/h
Energy Saving up to 21.5 SEER
Ultra Quiet Operation - Indoor unit sound pressure 19 dB (Sleep Mode)
Operation Range
Cooling: 14˚F DB to 118˚F DB*
Heating: -4˚F WB to 65˚F WB
Inverter driven precision load matching - maximizes compressor efficiency, minimizing power consumption
*Optional Low Ambient Wind Baffle Kit allows operation down to 0˚F in Cooling
