LG's most energy-efficient line of heat pump duct-free products. Systems are available in 9,000, 12,000, 18,000, and 24,000 Btu/h capacities.
All systems in the duct-free high-efficiency line achieve Energy Star qualifications. The single zone systems feature energy-saving Inverter (variable-speed compressor) technology and can be controlled through a standard wireless remote or an optional wired wall controller.
|
System Model #
|
LS091HSV3
|
LS121HSV3
|
LS181HSV3
|
LS240HSV3
|
LS307HV3
|
LS360HV3
|
|
Indoor Model #
|
LSN091HSV3
|
LSN121HSV3
|
LSN181HSV3
|
LSN240HSV3
|
LSN307HV3
|
LSN360HV3
|
|
Outdoor Model #
|
LSU091HSV3
|
LSU121HSV3
|
LSU181HSV3
|
LSU240HSV3
|
LSU307HV3
|
LSU360HV3
|
|
|
|
|
|
|
|
|
Performance
|
|
|
|
|
|
|
|
Capacity (BTUs) cooling
|
9,000
|
11,200
|
18,200
|
22,000
|
30,000
|
33,000
|
|
Capacity (BTUs) heating
|
10,800
|
13,300
|
22,000
|
27,600
|
32,000
|
35,200
|
|
EER
|
13.3
|
12.5
|
12.6
|
12.5
|
10.0
|
8.2
|
|
SEER
|
21.5
|
21.5
|
20.5
|
20.0
|
18.0
|
16.1
|
|
HSPF
|
11.0
|
11.0
|
9.7
|
10.2
|
9.5
|
9.9
|
|
Air Circulation (CFM H/M/L)
|
335/272/212
|
353/272/212
|
622/509/399
|
742/629/424
|
770/629/424
|
795/629/424
|
|
Fan Speeds
|
6/6/6
|
6/6/6
|
6/6/6
|
4/4/4
|
4/4/4
|
4/4/4
|
|
Dehumidification (pts/hr)
|
2.6
|
3.0
|
5.5
|
6.0
|
10.6
|
10.6
|
|
Indoor dB(A)*
|
38/33/24
|
39/33/24
|
45/40/35
|
46/43/39
|
49/44/39
|
49/44/39
|
|
Outdoor dB(A)*
|
45
|
45
|
53
|
54
|
55
|
55
|
| *LG verified sound ratings |
|
|
|
|
|
|
|
Electrical
|
|
|
|
|
|
|
|
Rated Voltage Outdoor
|
230/208-60-1
|
230/208-60-1
|
230/208-60-1
|
230/208-60-1
|
230/208-60-1
|
230/208-60-1
|
|
Rated Voltage Indoor
|
230/208-60-1
|
230/208-60-1
|
230/208-60-1
|
230/208-60-1
|
230/208-60-1
|
230/208-60-1
|
|
|
|
|
|
|
|
|
Indoor Dimensions
|
|
|
|
|
|
|
|
W x H x D (inches)
|
34 13/16 x 11 1/4 x 8 1/4
|
34 13/16 x 11 1/4 x
8 1/4
|
40 9/16 x 12 13/16 x
9 11/16
|
40 9/16 x 12 13/18 x
9 11/16
|
47 5/8 x 13 5/8 x
8 1/16
|
47 5/8 x 13 5/8 x
8 1/16
|
|
Weight (lbs.)
|
23
|
23
|
32
|
36
|
36
|
36
|
|
Outdoor Dimensions
|
|
|
|
|
|
|
|
W x H x D (inches)
|
30 5/16 x 21 1/2 x 11 5/16
|
30 5/16 x 21 1/2 x
11 5/16
|
34 1/4 x 31 1/2 x
12 5/8
|
34 1/4 x 31 1/2 x
12 5/8
|
34 1/4 x 31 1/2 x
12 5/8
|
34 1/4 x 31 1/2 x
12 5/8
|
|
Weight (lbs.)
|
75
|
75
|
123
|
128
|
128
|
128
|
|
|
|
|
|
|
|
|
Thermostat Range
|
|
|
|
|
|
|
|
Cooling / Heating (°F)
|
64-86/60-86
|
64-86/60-86
|
64-86/60-86
|
64-86/60-86
|
64-86 /60-86
|
64-86 /60-86
|
|
|
|
|
|
|
|
|
Piping Connections |
|
|
|
|
|
| Liquid (inches) | 1/4 | 1/4 | 3/8 | 3/8 | 3/8 | 3/8 | Suction (inches) | 3/8 | 3/8 | 5/8 | 5/8 | 5/8 | 5/8 | Temperature Sensor | Thermistor | Thermistor | Thermistor | Thermistor | Thermistor | Thermistor | Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | Max Pipe Length | 65' | 65' | 98' | 98' | 98' | 98' | Max Elevation | 32' | 32' | 49' | 49' | 49' | 49' |
Warranty: 5 years parts; 7 years compressor
Features
• Inverter (Variable speed compressor)
• Energy saving
• R-410A Refrigerant
• Gold Fin™ Anti-corrosion
• Self-cleaning indoor coil
• Cooling/Heating/Fan mode
• Jet cool/Jet heat
• Chaos Wind
• 4-Way Auto Swing
• Sleep mode
• Auto restart
• Auto Changeover
• Built-in low ambient standard, down to 14ºF (cooling mode)
• 24-Hour on/off timer
• Condensate sensor connection
• Cooling only function
• 3M HAF filter Interior Unit Includes:

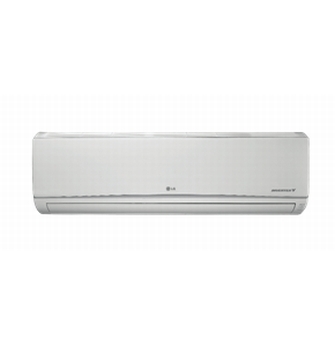

• Wall unit
• Installation plate & hardware
• Remote control, batteries, holder & holder hardware
• Installation manual
• Optional Accessories
-Model#:PREMTB10U
(LG Programmable Thermostat)
-Model#:PQDSNGMC1
(Dry Contact for Third Party Thermostat)
-Model#:ZLABGP01A
(Low ambient wind baffle kit - cooling down to 0ºF)
Exterior Unit Includes:
• Exterior unit
• Exterior unit has sufficient refrigerant for charging indoor coil and a 41’ line set (line set not included)
ETL# : 3091879
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Benefits
* Inverter variable-speed compressor in the outdoor unit for energy-saving operation
* Self-cleaning coils in the indoor unit for easier maintenance
* Many modes included, controlled through wireless remote: Cooling, Heating, Dehumidifying, Fan, Auto, Auto Sleep, Defrost
* Four-way Auto Swing feature
* Chaos Wind electronically controls fan speeds to create a more natural flow of air; Jet Cool / Jet Heat operates at high fan speeds for 30 minutes to quickly cool / heat down a room
* Operates down to 14°F in cooling mode
* Ultra quiet indoor unit operation
* Allows refrigerant piping lengths up to 66 or 98 feet, and elevation difference of 33 or 49 (depending on the model)
* R410A refrigerant
|
|
|
|
|
|
|
