System Model #
LH247HV
LH367HV

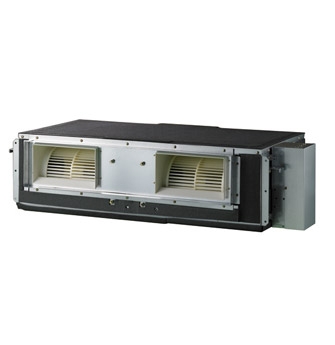

Indoor Model #
LHN247HV
LHN367HV
Outdoor Model #
LUU247HV
LUU367HV
Performance
Capacity (BTUs) cooling
24,000
36,000
Capacity (BTUs) heating
27,000
40,000
EER
12.0
12.1
SEER
17.0
17.6
HSPF
10.0
9.2
Air Circulation - Outdoor Unit (CFM H/M/L)
2048
1942 x 2
Air Circulation - Indoor Unit (CFM H/M/L)
688/618/530
1130/953/706
Fan Speeds
3/3/3
Dehumidification (pts/hr)
7.0
10.6
Indoor Unit (H/M/L) +/-3 dB(A)*
38/36/35
39/38/37
Outdoor Unit (Max. Cool/Heat) +/-3 dB(A)*
48/52
52/54
Electrical
Rated Voltage Outdoor
230/208-60-1
Rated Voltage Indoor
Indoor Dimensions
W x H x D (inches)
46 17/32 x 11 23/32 x 17 23/32
50 7/76 x 14 31/32 x 8 1/16
Weight (lbs.)
73
125
Outdoor Dimensions
37 13/32 x 32 27/32 x 14 3/16
34 5/16 x 31 1/2 x 23 5/8
133
203
Thermostat Range
Cooling / Heating (°F)
57-77 / 59-81
Piping Connections
Liquid (inches)
3/8
Suction (inches)
5/8
Temperature Sensor
Thermistor
Thermistory
Refrigerant
R410A
Max Pipe Length
164'
246'
Features • Inverter (Variable speed compressor)• R-410A Refrigerant• Gold Fin™ Anti-Corrosion• Auto restart• Cooling/Heating/Fan Modes• Auto sleep mode• Ultra-quiet operation• Dehumidifying mode• 24-Hour on/off timerInterior Unit Includes:• Ducted unit• Wired wall-mounted controller• Installation manual• Optional Accessories -Model#:PREMTB10U) (LG Programmable Controller) -Model#:PQDSB1 (Dry Contact Unit Dry Contact Unit) -Model#:PQCSZ250S0 (AC Ez)
Exterior Unit Includes:• Exterior unit• Exterior unit has sufficient refrigerant for charging indoor coil and a 25' line set (Line set not included)
