In addition to stylish design, LG Art Cool™ Premier brings with it an unrivaled package of the most complete air conditioning solutions.New Extended Warranty on new models: 5 years parts; 7 years compressor
Excellence in Design Gold Award 2013 by appliance DESIGN Magazine
System Model #
LA090HYV
LA120HYV
Indoor Model #
LAN090HYV
LAN120HYV

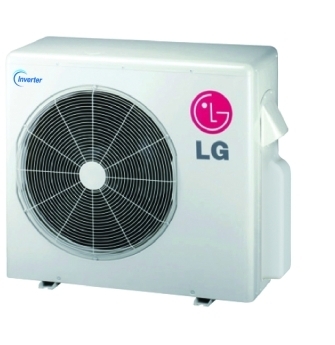

Outdoor Model #
LAU090HYV
LAU120HYV
Performance
Capacity (BTUs) cooling
9,000
12,000
Capacity (BTUs) heating
11,000
13,600
EER
16.0
14.1
SEER
27.5
25.5
HSPF
11.8
11.5
Air Circulation (CFM H/M/L)
494 / 417 / 283
Fan Speeds
6/6/6
Dehumidification (pts/hr)
3.3
3.7
Indoor dB(A)*
42/36/25
Outdoor dB(A)*
45
Electrical
Rated Voltage Outdoor (V/Hz/Ø)
208-230/60/1
Rated Voltage Indoor(V/Hz/Ø)
Indoor Dimensions
W x H x D (inches)
34 7/16 x 11 5/8 x 9 1/4
34 7/16 X 11 5/8 X 9 ¼
Weight (lbs.)
25
Outdoor Dimensions
30 5/16 x 21 1/2 x 11 5/16
30 5/16 X 21 ½ X 11 5/16
73
Thermostat Range
Cooling / Heating (°F)
64-86/60-86
Piping Connections
Liquid (inches)
1/4
Suction (inches)
3/8
Temperature Sensor
Thermistor
Refrigerant
R410A
Max Pipe Length
49'
Max Elevation
32'
