The slim, contemporary styling of the Art Cool™ Gallery Inverter models will appeal to today’s discerning customer. Available in 9,000 and 12,000 BTU/h, models come with a frame that allows the customer to modify and personalize the unit with their own artwork or photography – the ultimate in custom design plus with energy-efficient Inverter technology.
These indoor units, combined with small footprint outdoor units, provide both physical comfort and a stylish esthetic.
System Model #
LA090HVP
LA120HVP
Indoor Model #
LAN090HVP
LAN120HVP

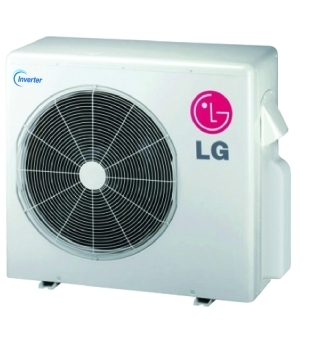

Outdoor Model #
LAU090HVP
LAU120HVP
Performance
Capacity (BTUs) cooling
9,000
11,200
Capacity (BTUs) heating
10,800
13,300
EER
12.5
12.0
SEER
16
HSPF
8.2
Air Circulation (CFM H/M/L)
350/300/230
Fan Speeds
5/Auto/Chaos
Dehumidification (pts/hour)
2.54
3.17
Indoor dB(A)*
42/36/32
Outdoor dB(A)*
45
Electrical
Rated Voltage Outdoor
230/208-60-1
Rated Voltage Indoor
Indoor Dimensions
W x H x D (inches)
23 5/8 x 23 5/8 x 5 3/4
Weight (lbs.)
30.9
Outdoor Dimensions
30 5/16 x 21 5/16 x 11 5/16
30 5/16 x 21 1/2 x 11 5/16
77.2
Thermostat Range
Cooling / Heating (°F)
64-86/60-86
Piping Connections
Liquid (Inches)
1/4
Suction (Inches)
3/8
Temperature Sensor
Thermistor
Refrigerant
R410A
Max Pipe Length
49'
Max Elevation
32'
